Aluminium tread plate

Aluminum tread plate, also known as aluminum diamond plate or aluminum checker plate, is a type of aluminum rolled sheet. It has a raised diamond or linear pattern on one side and is smooth on the other side. The raised pattern provides a skid-resistant surface and is typically used in various applications where slip resistance and durability are important. They increase the traction for foot traffic and add an aesthetic element, making it a popular choice for decorative purposes

There are two different Aluminum Tread Plate designs:

Aluminium Tread Plate is practical, decorative, durable and economical. Ideal for a variety of uses, including kickplates, doorways, door protectors, flooring, Industrial Settings (stairs, walkways), Vehicle modifications. 5 bar chequer plate can also be used decoratively.

Aluminium Tread plate is a light-weight metal sheet with a regular pattern of raised diamonds. The added texture reduces the risk of slipping.


Diamond Aluminium Tread Plate	Aluminium tread plate 5 bar

Detailed Description

Name	Aluminum tread plate, Aluminum diamond plate, Aluminum checker plate, Aluminum chequered plate, Aluminum tread checkered plate, Aluminum durbar floor plate.
Alloy	1050, 1060, 3003, 3103, 5026, 5052, 5083, 5086, 5754, 6082, 6061, 7020
Temper	F, O, H111, H114, H116, H224, H244, T4, T6, T61
Pattern Type	Lentil pattern diamond plate, 2 bar aluminium checker plate sheet, 3 bar aluminium checker plate sheet, 5 bar aluminium checker plate sheet, Needle pattern checker plate, Diamond checkered aluminum plate
Thickness	1.2-8mm
Width	100-1850 mm
Length	500-16000 mm
Muscle high	Refer to the pattern height tolerance table
Production Process	Hot rolling, embossing.
Surface treatment	Mill finish, Bright finishClick to view detailed surface
Color	Black, sliver, blue, etc.(Customizable)
Delivery type	Plate, Roll
Surface protection	With membrane or without membrane, can be customized according to requirements
Package	Wooden frame/wooden box packaging, steel belt fixed
Standard	GB/T3618, Q/EL432, EN 1386, ASTM -B209

Hot selling aluminum tread plate

Aluminum diamond plate coil

The Aluminum diamond plate coil is also called 1 bar aluminium checker plate sheet or a aluminum checker plate. It has raised patterns on the surface and is often used as a non-slip aluminum plate or a decorative aluminum plate. It has good performance of beauty, wear resistance and corrosion resistance.

2, 3, 5 bar aluminium tread plate

five-rib non-slip aluminum plate is also called willow-shaped pattern plate. Among them, the five-rib pattern plate can be divided into a large five-rib pattern plate and a small five-rib pattern plate according to the length of the pattern. The pattern lengths are 42mm and 34mm respectively. The patterns on the surface of the aluminum plate are arranged in parallel and present an angle of 60-80 degrees. This pattern has excellent anti-skid performance. It is mainly used for the interior of ambulance and fire truck pedal, truck compartment and trailer floor, etc.

Lentil pattern diamond plate

It is a commonly used style of anti-slip aluminum plate, with good anti-slip effect, mainly used for carriage, platform anti-slip, cold storage floor anti-slip, workshop floor anti-slip, elevator anti-slip.

1050 1060 pure aluminum tread plate: aluminum alloy pattern plate processed with 1050 1060 aluminum plate as the base, which can adapt to the conventional environment and is cheap. Usually stair treads, cold storage, floors, and outer packaging use this kind of patterned aluminum sheet.

3003 3103 Al-Mn tread checkered plate :processed with 3003 3103 as the main raw material, this kind of aluminum plate is also called anti-rust aluminum plate, its strength is slightly higher than that of ordinary aluminum tread checkered plate, and it has certain anti-rust performance, but its hardness and corrosion resistance are not as good as the 5000 series aluminum tread checkered plate, so this product is used in rust-proof aspects that do not require strict requirements, such as truck models, refrigerated vehicles, and cold storage floors.

5052, 5083, 5754 Al-Mg tread checkered plate: processed from 5000 series aluminum plates such as 5052, 5083, etc., with good corrosion resistance, hardness, and rust resistance. It is usually used in special places, such as ships, carriages and other humid environments. This kind of aluminum plate has high hardness and has a certain load-bearing capacity.

6061, 6082 Al-Mg-Si tread checkered plate: processed from 6000 series aluminum plates such as 6061, 6082, etc., adding magnesium and silicon elements can further improve the corrosion resistance of the checkered plate, with high strength and good processing and welding performance. It is usually used in special places that need to be suspended in the air, such as places that need to be suspended in the air, stern anti-skid protection, shipping engineering, energy and chemical industry, etc., which are highly corrosive and prone to rust and corrosion.

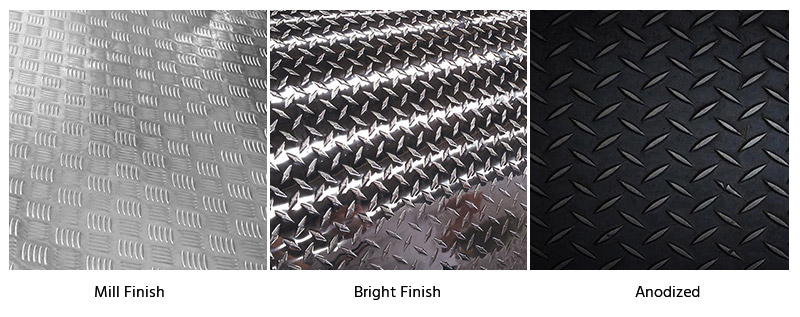

Surface selection of aluminum tread plate

Packaging & Delivery

Packaging Detail:	export standard, covering with brown paper and plastic film then packed with wooden case/pallet
Delivery Detail:	30 days after receiving deposit
